Hydrosizer (H-TBS Series)

The next generation of Hydrosizer technology.

The HICTECH Hydrosizer H-TBS (teetered bed slurry separator) is the industry’s most advanced density separator for coarse coal slimes. With precision PLC control, real-time density monitoring, and rugged design, the Hydrosizer ensures stable, efficient, and low-cost separation — even in demanding operations. It efficiently delivers consistent, high-quality clean coal recovery with minimal operator intervention.

The Hydrosizer H-TBS is primarily composed of a material feeding and spreading device, a disturbing separating room, an upward flow injection system, a cleaned coal flow guiding system, a density detection device and a gangue discharging gate control system.
ㅤ

Features:

Automated density and flow control
High efficiency of separation
Rugged, low-maintenance construction from 304 Stainless steel
Capacities from 50–160 t/h
Flexible integration into existing prep plant flowsheets
Controllable and adjustable separation density within 1.2~1.9g/cm3

Applications:

Coarse coal slime recovery
Plant yield improvement
Tailings upgrade projects
Reduced flotation circuit loads
Single stage & two stage
Spiral product upgrading
Flotation tailings reprocessing

Technical Information

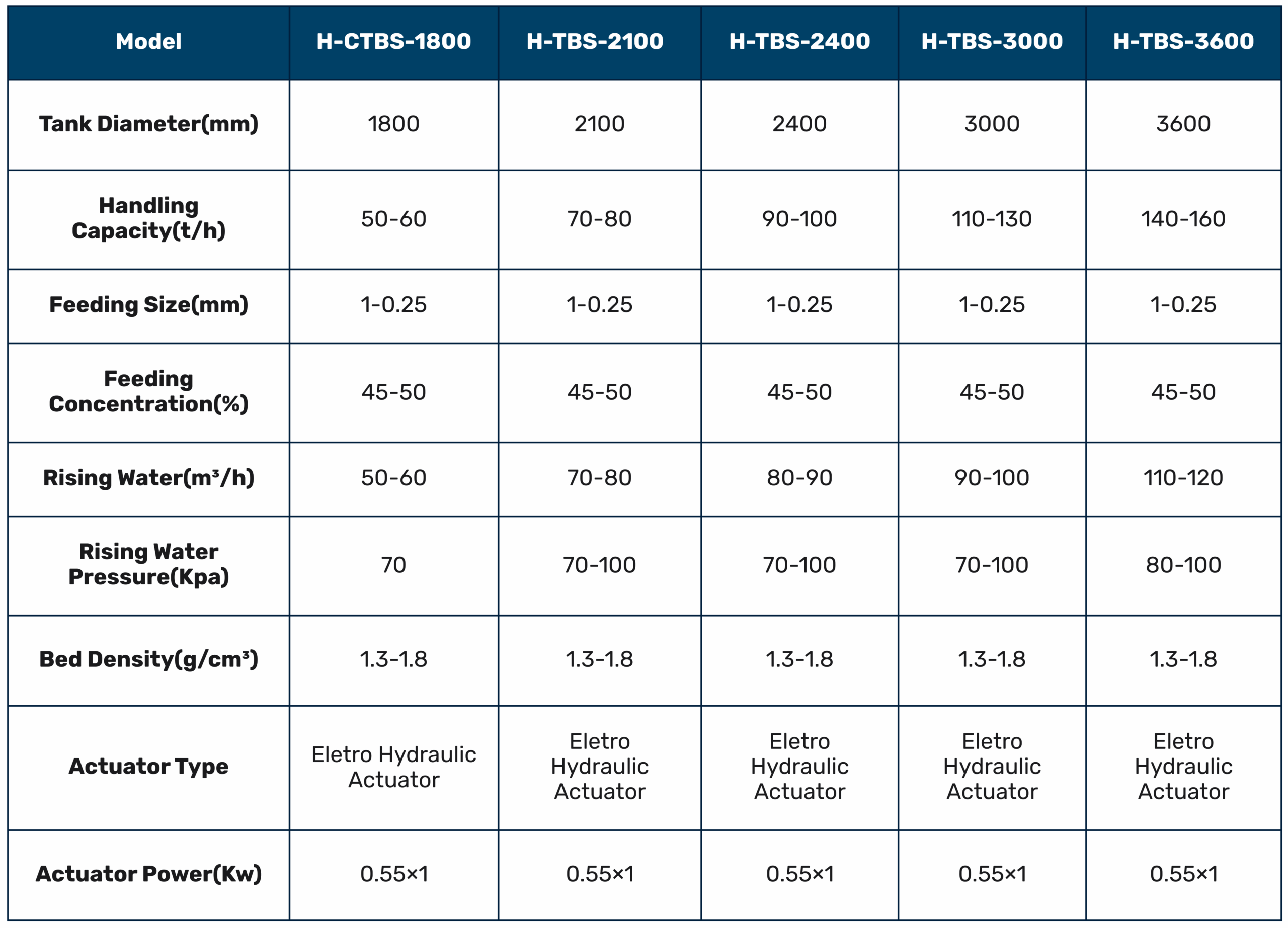

TBS Parameters
